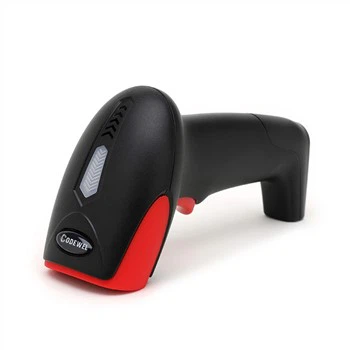

1D CCD Barcode Scanner

1D CCD Barcode Scanner Performance Parameter

Sensor: 1500 pixels

Scanning method: manual or Auto-scan

Scanning speed:300 times/s

Ua kom pom tseeb: liab LED

Reading precision:(>4MIL)

Scanning angle:Rotation 360 degree Tilt55 degree Pitch 55

Visual Indicator:LED buzzer

1D CCD Barcode Scanner Txhawb Barcode

1Dbarcode:EAN,UPC.Code 39,Code 93.Code 128,UCC/EAN 128.Codabar, Interleaved 2 ntawm 5.ITF-6,ITF-14,ISBN,ISSN. MSI-PlesseyGS1Databar,GS1Composite Code.Code 11,Industrial 25,Standard 25,Plessey.Matrix2 ntawm 5

1D CCD Barcode Scanner Interface

Communication Interface:USB

Physical parameters

Qhov Loj: L(164W(65)H(98)MM

Luj: 138G (tsis suav nrog cable)

Visual Indicator:Two-color LED lampa buzzer

Qhov hluav taws xob: DC: 5V

Current:working current:65MA.StandbyCurrent:15MA.Maximumcurrent:85MA

Environmental parameters

Working temperature:-20 degree plus 50 degree

Cia kub: -20 degree ntxiv rau 70 degree

Relative Humidity:5 percent 95 percent Non-condensing

Ambientillumination: 0-10000LUX

Electrostatic Protection:4KVDirect Discharge10KV(Air Discharge）

Drop/Shock Resistance:withstands multiple times1.2 meters drops to concrete

Kev tiv thaiv qib: P54

Qhov tob ntawm thaj tsam thiab kev daws teeb meem

4MIL---27-60MM 5MIL--18-130MM 10MI-10-320MM 20MIL--19-600MM

Tshuab specification

1 Cartonwith sawv): 5243.562cm / 40pcs / 23kgsbox: 211510cm / 1pc / 0.55kgs

1 Carton tsis muaj qhov muag: 574045cm / 50pcs / 16kgs (box: 18.5118.5cm / 1pc / 0.35kgs
