Xaiv txoj cai thermal hloov ribbon (feem ntau hu ua "ribbon" los yog "carbon ribbon") tsis yog hais txog nqe - nws ncaj qha cuam tshuam rau kev luam ntawv zoo, barcode scanability, daim ntawv lo durability, thiab lub taub hau lub tshuab luam ntawv. Phau ntawv qhia no coj koj mus rau txoj kev txiav txim siab: ribbon hom → daim ntawv lo cov ntaub ntawv → ib puag ncig → tshuab luam ntawv compatibility → kuaj → kev yuav khoom zoo tshaj plaws.

1. Ribbon hom - yooj yim thawj faib

Thermal hloov ribbons feem ntau poob rau hauv peb pawg:

Wax- Kev lag luam tshaj plaws. Zoo rau cov ntawv sau thiab luv luv - siv sab hauv tsev. Ib qho yooj yim luam tawm tab sis tsis tshua muaj kev tiv thaiv abrasion, tshav kub, thiab cov kuab tshuaj.

Wax-Resin- Ib qho kev sib npaug, ntau yam kev xaiv. Zoo abrasion thiab tshuaj tiv thaiv zoo dua li siv quav ciab; ua haujlwm zoo ntawm cov ntawv coated thiab ntau cov khoom siv hluavtaws. Zoo tagnrho rau kev sib xyaw- siv daim ntawv thov.

Resin- Ua tau ntev tshaj plaws. Kev tiv thaiv zoo heev rau cov kuab tshuaj, abrasion, tshav kub, thiab sab nraum zoov raug. Qhov zoo tshaj plaws rau cov ntaub ntawv hluavtaws (PET, PE, PP), kev lag luam siv, thiab txhua daim ntawv thov xav tau lub neej ntev.

Txoj cai ntawm tus ntiv tes xoo:pib nrog cov khoom siv daim ntawv lo (hauv qab no) thiab tom qab ntawd xaiv cov ribbon kim tshaj plaws uas ua tau raws li qhov yuav tsum tau ua.

2. Sib phim ribbon rau cov khoom siv (thawj qhov tseem ceeb)

Label substrate tsav koj xaiv:

Daim ntawv tsis coated:Wax feem ntau ua haujlwm thiab raug nqi -zoo.

Coated ntawv / semi-gloss / siab dua daim ntawv:Wax-resin feem ntau pom zoo.

Cov khoom siv hluavtaws (PET, PE, PP):Wax feem ntau ua tsis tau - sivwax-covlos yogresinnyob ntawm kev xav tau durability.

High- ua haujlwm ntev lossis hnyav ib puag ncig (tshuaj lom neeg, nquag ua puas, sab nraum zoov): Resinfeem ntau yuav tsum tau.

Kev siv cov ribbon tsis ncaj ncees lawm ua rau smudging, tsis zoo adhesion, fading, los yog ua tiav ntawm cov luam tawm nyob rau hauv kev ntxhov siab - uas tuaj yeem ua txhaum cov saw hlau thiab ua rau scanning / traceability ua tsis tiav.

Nco ntsoov:Thermal daim ntawv lo tsis xav tau barcode ribbon.

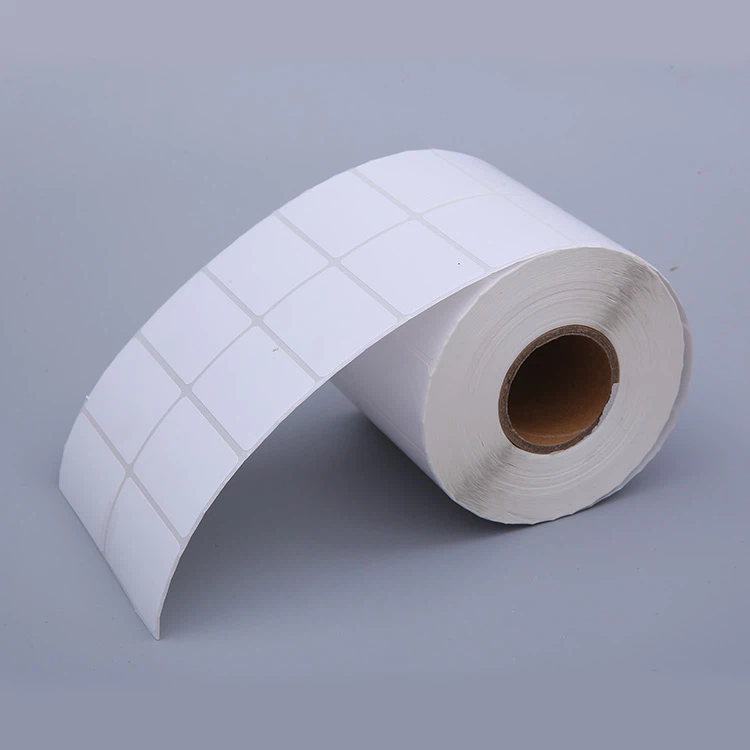

Common Adhesive Label Hom



Coated daim ntawv lo

PET daim ntawv lo

npp tag

Thermal daim ntawv lo

3. Xav txog qhov chaw siv

Xav txog dab tsi daim ntawv lo yuav ntsib thaum lawv lub neej:

Luv -term, sab hauv:Wax los yog siv quav ciab-resin.

Kev ntub dej, ntub, nquag tuav:Wax-resin nyiam.

Kev raug tshuaj lom neeg, roj, cov kuab tshuaj, kev puas tsuaj, ntev sab nraum zoov raug lossis kub siab:Resin yog qhov kev xaiv nyab xeeb.

Sau cov xwm txheej phem tshaj plaws (cov tshuaj lom neeg, qhov kub thiab txias, lub voj voog tawg) thiab xaiv cov kab uas muaj sia nyob qhov kev sim ntawd.

4. Paub meej tias lub tshuab luam ntawv thiab lub taub hau luam ntawv sib haum

Tsis yog txhua tus ribbons ua haujlwm sib npaug nrog txhua lub tshuab luam ntawv:

• Printhead hom:tiaj tus- taub hau vs ze - ntug vs TTO (Thermal Transfer Overprint) - txhua tus tuaj yeem muaj cov lus pom zoo sib txawv.
• Ribbon orientation:"ink-in" vs "ink-out" mounting teeb meem.
• Lub tshuab luam ntawv ceev thiab dpi:Kev nrawm dua thiab kev daws teeb meem siab dua (300-600 dpi) tuaj yeem xav tau cov qauv sib txawv rau cov ntawv luam tawm ntse, zoo ib yam.

Ib txwm paub meej tias ribbon core loj, yob dav, thiab mounting hom phim koj lub tshuab luam ntawv. Kev siv cov ribbon tsis sib xws ua rau muaj kev hnav khaub ncaws ntau dua thiab ua rau cov ntawv luam tawm tsis zoo.

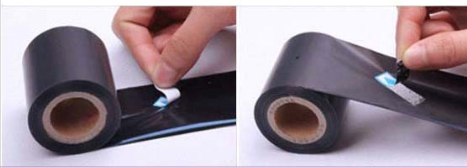

• Yuav ua li cas paub qhov txawv ntawm "ink-in" thiab "ink-out"?

Txuas cov ntawv nplaum rau sab hauv thiab sab nraud ntawm ribbon feem, ces tev lawv tawm. Yog tias daim ntawv nplaum muaj cov hmoov carbon hmoov daig rau nws tom qab tev tawm ntawm sab hauv, nws yog number case -nyob rau hauv ribbon; txwv tsis pub, nws yog number case - tawm ribbon.


5. Ntsiab technical specs los xyuas

Thaum ntsuas cov kev xaiv ribbon, kos:

• Substrate compatibility:Puas yog cov ribbon tsim rau koj cov khoom siv?
• Optical ceev / blackness:Qhov tseem ceeb rau kev nyeem ntawv barcode.
• Backcoating thiab lubricants:Tiv thaiv lub taub hau thiab txo qhov zoo li qub / kev sib txhuam thaum lub sijhawm ua haujlwm siab - ntim.
• Resin ntsiab lus:Resin siab dua=ntau dua durability (tab sis tus nqi siab dua).
• Roll qhov ntev:Qhov dav, qhov ntev, thiab txoj kab uas hla yuav tsum phim koj lub tshuab luam ntawv.
• Pom zoo printhead kub & ceev:Xyuas kom tseeb tias koj lub tshuab luam ntawv tuaj yeem ua haujlwm hauv qhov ntau.

6. Kev sim SOP - ua qhov no ua ntej xaj loj

Ua ntej cog lus rau tus neeg xa khoom lossis ntau qhov ntau, khiav qhov kev sim ceev no:

1. Tau txais yam tsawg kawg peb daim qauv ribbon(wax, wax-resin, resin qhov twg siv tau).
2. Sau cov npe sawv cevsiv koj lub tshuab luam ntawv ntau lawm ntawm koj qhov nrawm & dpi.
3. Ua cov kev ntsuam xyuas durability:

• Abrasion test (ntiv tes rub / daim kab xev rub).
• Cov kuab tshuaj tiv thaiv kab mob (isopropyl cawv thiab cov kuab tshuaj cuam tshuam rau koj ib puag ncig).
• Thaum tshav kub kub / txias caij tsheb kauj vab yog tias cov ntawv npog ntsej muag kub heev.

4. Luam theej duab barcodestam sim ntawd thiab tom qab cov kev xeem durability kom paub meej tias nyeem tau.

5.Tshawb xyuas lub taub hau hnavtom qab nruab nrab khiav; taug qab txhua qhov kev hloov pauv ntau zaus.

6. Sau cov txiaj ntsigthiab suav Tag Nrho Cov Nqi Ntawm Cov Tswv Cuab (cov khoom siv nqi ib daim ntawv lo + nce ntxiv lub taub hau hloov + downtime).

Ua kev txiav txim siab raws li cov txiaj ntsig kev xeem, tsis yog tus neeg muag khoom thov lossis nqi tsev xwb.

7. Kev yuav khoom pitfalls (tsis txhob cov no)

• Yuav nkaus xwbqis tshaj ib -roll pricetsis xav txog cov txiaj ntsig, daim ntawv pov thawj, lossis kev cuam tshuam ntawm lub taub hau.
• Hla kev txheeb xyuas kev sib raug zoo rau cov tshuab luam ntawv tshiab lossis cov ntawv sau npe.
• Tsis thov cov qauv lossis kuaj cov ntaub ntawv rau tshuaj lom neeg / UV tiv thaiv thaum xav tau.
• Tsis accounting rautus nqi tag nrho(khoom + tu + downtime).

8. Daim ntawv teev khoom ceev ceev

• Label substrate paub tseeb (paper / coated / PE / PP / PET)
• Siv cov ntaub ntawv ib puag ncig (humidity, chemicals, abrasion, temperature)
• Lub tshuab luam ntawv qauv, printhead hom, orientation, core loj paub tseeb
• Yuav tsum tau dpi thiab luam ntawv ceev tau teev tseg
• Cov qauv thov thiab kuaj (peb ribbon min)
• Barcode readability validated post -test
• TCO xam (tus nqi ib daim ntawv lo siv tau + tu)
