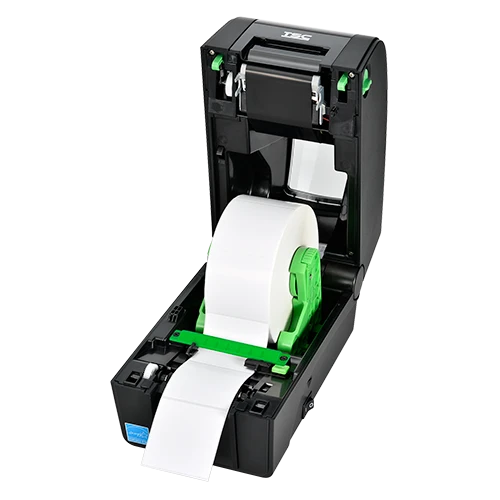

TH Series Desktop Barcode tshuab luam ntawv 2-Inch Specifications TH220T / TH320T

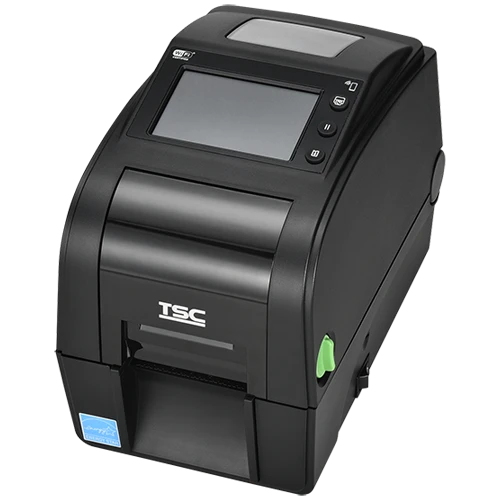

TH Series Desktop Barcode Printer 2-Inch Specifications TH220T/TH320T
TH Series Desktop Barcode Printer 2-Inch Specifications TH220T/TH320T

TH Series Desktop Barcode tshuab luam ntawv 2-Inch Specifications TH220T / TH320T

Hu rau kuv:sales012@codewel.com
Lub npe: TSC
Kev daws teeb meem: 203dpi
Txoj kev luam ntawv: Direct Thermal
Max. luam ntawv ceev: 203mm (8 ") / thib ob
Max. print dav: 54 hli (2.13 ")
Warranty (Xyoo): 2-Year

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Yuav koom tes nrog peb li cas?

Hangzhou Codewel New Material Co., Ltd yog nyob ntawm lub nroog zoo nkauj Hangzhou, yog lub ntiaj teb barcode daim ntawv lo & barcdoe ribbon, printhead chaw tsim tshuaj paus kev koom ua ke nrog R & D, ntau lawm thiab kev lag luam.

Peb qhov chaw nyob

ROOM NO 101 - 20 , 101 - 21 , LUB 26 TUG, NO 1 CANGXING ROAD, CANGQIAN STREET, YUHANG
DISTRICT, HANGZHOU, ZHEJIANG, Suav teb

Xov tooj

+86 19157920380

E -mail

sales012@codewel.com

Qauv	TSI 220 T	TSI 320T
Kev daws teeb meem	8 teev / hli (203 dpi)	12 dots / hli (300 dpi)
Kev luam ntawv	Thermal Hloov & Direct Thermal	Thermal Hloov & Direct Thermal
Max. Luam nrawm	203mm (8 ") / feeb	152mm (6 ") / feeb
Max. Sau Dav	54 hli (2.13 ")	56.9 hli (2.24 ")
Max. Luam Length	25,400mm (1,000 ")	11,430 hli (450 ")
Npog	Clamshell nrog ob - phab ntsa yas	Clamshell nrog ob - phab ntsa yas
Lub cev Dimension	146mm (W) x 178mm (H) x 231mm (D) 5.75"(W) x 7.05"(H) x 9.09"(D)	146mm (W) x 178mm (H) x 231mm (D) 5.75"(W) x 7.05"(H) x 9.09"(D)
Qhov hnyav	1.8kg (3.97 lbs)	1.8kg (3.97 lbs)
Label Roll Capacity	127mm (5") OD	127mm (5") OD
Ribbon	Luas 90 m, max. OD 37mm, 0.5" core (cov ntawv luam tawm sab nraud)	Luas 90 m, max. OD 37mm, 0.5" core (cov ntawv luam tawm sab nraud)
Ribbon dav	56mm - 58mm (2.20" - 2.28")	56mm - 58mm (2.20" - 2.28")
Processor	32-ntsis RISC CPU	32-ntsis RISC CPU
Nco	128 MB Flash nco 128 MB SDRAM microSD daim npav nyeem ntawv rau Flash nco nthuav dav, max . 512 GB, FAT32 thiab exFAT nkaus xwb	128 MB Flash nco 128 MB SDRAM microSD daim npav nyeem ntawv rau Flash nco nthuav dav, max . 512 GB, FAT32 thiab exFAT nkaus xwb
Interface	USB 2.0 Qauv: RS-232 USB Host Internal Ethernet, 10/100 Mbps 802.11a/b/g/n/ac Wi-Fi nrog Bluetooth 5.0 combo module (tus neeg muag khoom xaiv) Bluetooth 5.0 (tus neeg muag khoom xaiv) MFi Bluetooth 5.0 (Lub Hoobkas xaiv)	USB 2.0 Qauv: RS-232 USB Host Internal Ethernet, 10/100 Mbps 802.11a/b/g/n/ac Wi-Fi nrog Bluetooth 5.0 combo module (tus neeg muag khoom xaiv) Bluetooth 5.0 (tus neeg muag khoom xaiv) MFi Bluetooth 5.0 (Lub Hoobkas xaiv)
Hwj chim	Sab nraud Universal switching fais fab mov Tawm tswv yim: AC 100-240V, 1.5A, 50-60Hz Tawm tswv yim: DC 24V, 2.5A, 60W	Sab nraud Universal switching fais fab mov Tawm tswv yim: AC 100-240V, 1.5A, 50-60Hz Tawm tswv yim: DC 24V, 2.5A, 60W
Ua haujlwm Hloov, khawm, LED / LCD	1 lub zog hloov 1 khawm feed 1 pause khawm	1 reprint khawm 3.5 "xim kov zaub, 480 x 320 pixels
Sensors	Transmissive qhov sib txawv sensor Blackmark reflective sensor (txoj hauj lwm adjustable)	Ribbon kawg sensor Lub taub hau qhib sensor
Lub Sijhawm Teev Sijhawm	Txuj	Txuj
Sab hauv Font	8 alpha-cov lej bitmap fonts Monotype Imaging® muaj tseeb hom font cav nrog ib qho CG Triumvirate Bold Condensed scalable font ARIAL, UNI_TTF Unicode hom ntawv tseeb	8 alpha-cov lej bitmap fonts Monotype Imaging® muaj tseeb hom font cav nrog ib qho CG Triumvirate Bold Condensed scalable font ARIAL, UNI_TTF Unicode hom ntawv tseeb
Barcode	1D barcode: Code 39, Code 93, Code128UCC, Code128 subsets A, B, C, Codabar, Interleaved 2 ntawm 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN thiab UPC} ntxiv 2(5) MPS POSTNET, Suav teb Post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D barcode: GS1 DataBar, GS1 DataBar Stacked, GS1 DataBar Expanded, GS1 DataBar Truncated, GS1 DataBar Limited, PDF417, Maxicode, Data Matrix, QR code, Aztec, Micro PDF417, TLC39, CODABLOCK F barcode	1D barcode: Code 39, Code 93, Code128UCC, Code128 subsets A, B, C, Codabar, Interleaved 2 ntawm 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN thiab UPC} ntxiv 2(5) MPS POSTNET, Suav teb Post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D barcode: GS1 DataBar, GS1 DataBar Stacked, GS1 DataBar Expanded, GS1 DataBar Truncated, GS1 DataBar Limited, PDF417, Maxicode, Data Matrix, QR code, Aztec, Micro PDF417, TLC39, CODABLOCK F barcode
