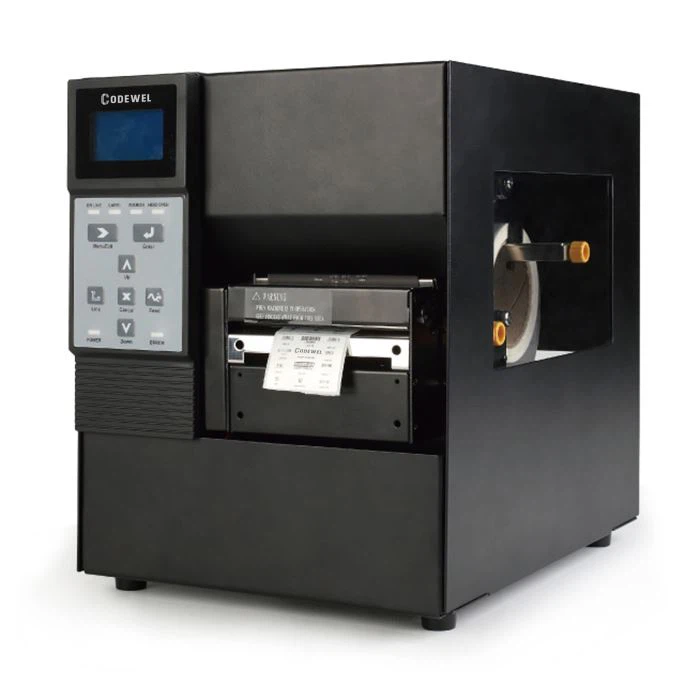

Leden Industrial Barcode tshuab luam ntawv LG680 300 Dpi
Khoom siv: Leden Industrial tshuab luam ntawv
Cov txheej txheem luam tawm: Thermal Hloov / Direct Thermal
Kev daws teeb meem: 300 dpi
Software:LEDEN LABEL
Xa kev nug
Tsham tam sim no
Khoom Taw qhia
Leden Industrial Barcode tshuab luam ntawv LG680 300 Dpi
Specifications ntawm LG680 tshuab luam ntawv
| Kev luam tawm | Thermal Hloov / Direct Thermal |
| Kev daws teeb meem | 300 dpi (12 dots / hli) |
| Luam nrawm | 5 IPS (125 hli / s) |
| Sau Dav | 106mm(4.17") |
| Luam Length | Min.0.24"(6 mm); Max.15.75"(400 mm) |
| Processor | 32 ntsis RISC CPU |
| Nco | 6 MB Flash; 4 MB SDRAM |
| Hom Sensor | Adjustable daim ntawv lo thiab reflective sensors |
| Media | Continuous form,gap labels,black mark sensing,and punched hole,label length set by auto sensing or programming Width:1"(25.4 mm) Min.4.64"(118 mm) Max. Thickness:0.0024"(0.06 mm) Min. - 0.01"(0.25 mm) Max. Label Roll Diameter:Max.8"(200 mm) Core Diameter: 1.5"(38.1 mm), 3"(76.2 mm) |
| Ribbon | Types: Wax, wax/resin, resin Length: 981' (300 m) Width: 1.18" Min - 4.33" (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67" (68 mm) Core diameter: 1" (25.4 mm) |
| Lub tshuab luam ntawv | APL |
| Software | LEDEN LABEL |
| Cov Neeg Nyob Hauv Fonts | Bitmap fonts {{0}},90 degree, 180 degree, 270 degree rotatable, ib tus cim 0,90 degree, 180 degree, 270 degree rotatable Bitmap fonts 8 zaug nthuav dav hauv kab rov tav thiab ntsug Scalable fonts 0.90 degree, 180 degree, 270 degree rotatable |
| Download tau Fonts | Bitmap fonts {{0}},90 degree, 180 degree, 270 degree rotatable, ib tus cim 0,90 degree, 180 degree, 270 degree rotatable Bitmap fonts 8 zaug nthuav dav hauv kab rov tav thiab ntsug Scalable fonts 0.90 degree, 180 degree, 270 degree rotatable |
| Barcodes | 1-D Bar Codes China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, |
| Cov nplooj ntawv Code | |
| Duab | Cov ntaub ntawv duab nraaj nyob hauv yog BMP thiab PCX, lwm hom duab nraaj yog rub tau los ntawm software |
| Interfaces | USB 2.0 (B-Type),LPT |
| Tswj Vaj Huam Sib Luag | Ob pawg ntawm ob -xim LED qhov taw qhia: Fais fab, On line, Label, Ribbon, Lub taub hau qhib, yuam kev; Calibration khawm: nce thiab nqis; Tswj cov yuam sij: Ntawv qhia zaub mov / Tawm, Nkag mus, Pub, Ncua, Cancal |
| Lub Sijhawm Teev Sijhawm | |
| Hwj chim | Nws pib hloov 100-240 V AC, 50-60 Hz. |
| Ib puag ncig | Kev Ua Haujlwm Kub Kub 41 ° F txog 104 ° F (5 ° txog 40 ° F) Cia Kub -4 ° F txog 122 ° F (-20 ° txog 50 ° F) |
| Cov av noo | Operation 30 – 85 percent , non-condensing. Storage 10 - 90 percent , non-condensing. |
| Kev pom zoo ntawm Lub Chaw Haujlwm | CE |
| Dimension | 430mm 273mm 330 hli |
| Qhov hnyav | 20kg ua |
| Kev xaiv | daim ntawv lo rewinder, Cutter |
| Nco tseg | Cov lus qhia tshwj xeeb tuaj yeem hloov pauv yam tsis tau ceeb toom. Txhua lub tuam txhab thiab / lossis cov npe khoom lag luam yog cov cim lag luam thiab / lossis cov npe lag luam ntawm lawv cov tswv. |
