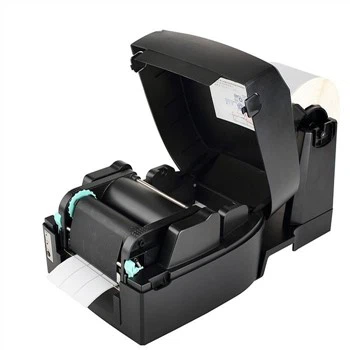

Leden Industrial Barcode tshuab luam ntawv LG660 600 Dpi
Khoom siv: Leden Industrial tshuab luam ntawv
Cov txheej txheem luam tawm: Thermal Hloov / Direct Thermal
Kev daws teeb meem: 600 dpi
Software:LEDEN LABEL
Xa kev nug
Tsham tam sim no
Khoom Taw qhia
Leden Industrial Barcode tshuab luam ntawv LG660 600 Dpi
Specifications ntawm LG660 tshuab luam ntawv
| Kev luam tawm | Thermal Hloov / Direct Thermal |
| Kev daws teeb meem | 600 dpi (24 dots / hli) |
| Luam nrawm | 4 IPS (101.6 hli / s) |
| Sau Dav | 106mm(4.17") |
| Luam Length | Min.0.24"(6 mm); Max.39.4"(1000 mm) |
| Processor | 32 ntsis RISC CPU |
| Nco | Flash 8M,SDRAM 64 M |
| Hom Sensor | Adjustable reflective sensor (tag nrho ntau), Adjustable transmissive sensor thiab reflective sensor |
| Media | Continuous form,gap labels,black mark sensing,and punched hole,label length set by auto sensing or programming Width:1"(25.4 mm) Min.4.64"(118 mm) Max. Thickness:0.0024"(0.06 mm) Min. - 0.01"(0.25 mm) Max. Label Roll Diameter:Max.8"(200 mm) Core Diameter: 1.5"(38.1 mm), 3"(76.2 mm) |
| Ribbon | Types: Wax, wax/resin, resin Length: 981' (300 m) Width: 1.18" Min - 4.33" (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67" (68 mm) Core diameter: 1" (25.4 mm) |
| Lub tshuab luam ntawv | APL, ZPLII, pib hloov |
| Software | LEDEN LABEL |
| Cov Neeg Nyob Hauv Fonts | Cov ntawv Fonts -Asian thiab lwm yam khoom siv thoob ntiaj teb font; 7 tus neeg nyob hauv qhov nthuav dav ZPL II bitmap pem hauv ntej; ib tus neeg nyob hauv scalabel fonts; txhawb qhov rais fonts; Unicode raws li ntau- hom lus, ntawm - thov thermal luam ntawv |
| Download tau Fonts | Cov ntawv Fonts -Asian thiab lwm yam khoom siv thoob ntiaj teb font; 7 tus neeg nyob hauv qhov nthuav dav ZPL II bitmap pem hauv ntej; ib tus neeg nyob hauv scalabel fonts; txhawb qhov rais fonts; Unicode raws li ntau- hom lus, ntawm - thov thermal luam ntawv |
| Barcodes | 1-D Barcodes Code 39, Code 93, EAN 8 / 13 (ntxiv rau 2 5), UPC A/E (ntxiv rau 2 5), Interleaved 2of5, Codabar, Code 128 (subset A, B, C), EAN 128, UCC 128, UCC/EAN-128 K-Mart, ITF 14, GS1 DataBar 2-D Barcodes PDF417, QR code, Micro PDF417 thiab Micro QR code |
| Cov nplooj ntawv Code | TXOJ CAI 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, { {12}}, 737 Unicode (UTF8, UTF16) |
| Duab | Txhawb Cov Neeg Siv -txhais fonts thiab cov duab - suav nrog cov cim kev cai; ZPL II cov lus txib kos duab- rau cov thawv thiab kab |
| Interfaces | USB2.0 Ethernet10/100Mbps RS-232 (Yeem) |
| Tswj Vaj Huam Sib Luag | Ob pawg ntawm ob -xim LED qhov taw qhia: Fais fab, On line, Label, Ribbon, Lub taub hau qhib, yuam kev; Calibration khawm: nce thiab nqis; Tswj cov yuam sij: Ntawv qhia zaub mov / Tawm, Nkag mus, Pub, Ncua, Cancal |
| Lub Sijhawm Teev Sijhawm | Txuj |
| Hwj chim | Nws pib hloov 100-240 V AC, 50-60 Hz. |
| Ib puag ncig | Kev Ua Haujlwm Kub Kub 41 ° F txog 104 ° F (5 ° txog 40 ° F) Cia Kub -4 ° F txog 122 ° F (-20 ° txog 50 ° F) |
| Cov av noo | Kev ua haujlwm 30-85 feem pua, tsis yog-condensing. Cia 10 - 90 feem pua, tsis-condensing. |
| Kev pom zoo ntawm Lub Chaw Haujlwm | CE |
| Dimension | Ntev: 430mm Qhov siab: 330mm Dav: 273mm |
| Qhov hnyav | 11kg ua |
| Kev xaiv | Daim ntawv lo rewinder, Cutter, RFID |
| Nco tseg | Cov lus qhia tshwj xeeb tuaj yeem hloov pauv yam tsis tau ceeb toom. Txhua lub tuam txhab thiab / lossis cov npe khoom lag luam yog cov cim lag luam thiab / lossis cov npe lag luam ntawm lawv cov tswv. |
